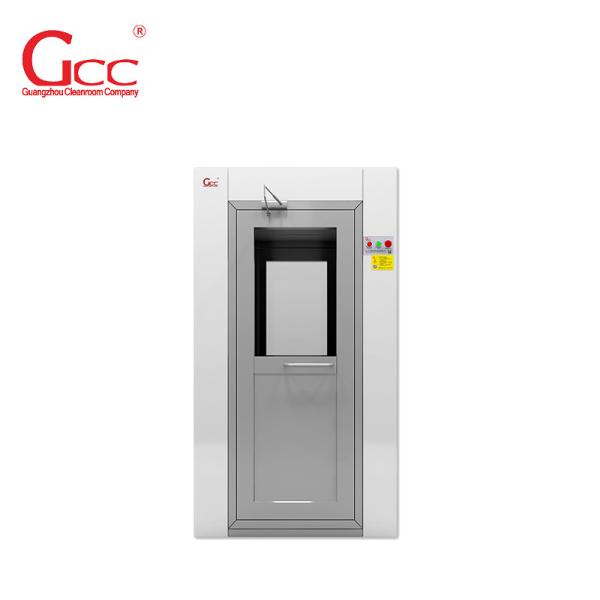

Cold Rolled Steel Air Shower Room With Mechanical Interlock Door
Cleanroom air shower is used to remove contaminate off personel and equipment as they enter a clean environment or exit a contaminated environment. cleanroom air shower also create a protective barrier between the clean and contaminated areas.
We offers a wide variety of sizes and construction materials in order to offer the most customized and affordable product for each individual need.
If you are unsure of what tpye of cleanroom air shower you may need for your particular project please feel free to contact us. We will provide a best solution according to your require.
Features
1. Fully auto controlled by computer, 2 mechanical interlocking door, automatically blow and shower.
2. Duration for showering can be adjusted from 0 second to 99 seconds with time showed on LPC board.
3. Made of stainless steel.
4. Efficiency can reach 99.99%@0.3μm with Pre-filter and Hepa-filter.
5. Air velocity can up to 25·30m/s.
6. Non -standard size. OEM is acceptable.
Product Specifications
| Item | GCC-AS-1000 |
| Material | Steel |
| Internal Size | 790*860*1910mm |
| External Size | 1200*1000*2050mm |
| Efficiency | 99.99%@0.3μm,G3 |
| Voltage | 110V |
| Air Volume | 1200m³/h |
| Fan Rotate Speed | 2800R/min |
| Wind Speed | ≥25-30m/s |
| Showering Time | 0-99s( adjustable) |
Noise
(The noise was measured from a meter away) | ＜62dB |
| Remark | Can Be Customized |
Quality Control
a. Checking raw material before producing.
b. Checking one by one before the assembling
c. Checking one by one during the production
d. Have the random inspection before the delivery.
Warranty
Our equipment is warranty for 1 year excluding consumable parts and accessories.
Contact our sales representative for specific warranty details or document request.
Application Fields
Cleanroom Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.
